Window - sills

Fensterbänke



We supply window sills and accessories directly from our stock, untreated or with finished surface.

Alloy: AlMgSi 0,5 F22; EN AW 6060 T66/ EN AW 6063 T6

Screw-mounting edge (25 mm) with oblong holes

Storage length: 6000 mm, cuttings according to specifications
Window sills are available from stock in the following outreaches:

50, 70, 90, 100, 110, 120, 130, 140, 150, 165, 180, 195, 210, 225, 240, 260, 280, 300, 320, 340, 360, 380, 400 mm




For more information on window sills, please call 06763 308-20.

Standard Colours

Aluminium window sills directly from stock
Anodisation: E6 EV1

E6 EV1 Matt

Powdercoating / RAL: 9016 Silck gloss

9016 Verkehrsweiß

Powdercoating / RAL: 7016 Matt

7016 Matt

Information about window sill - call 06763 308-20.

Individuell Colours

Aluminium window sill lead time approx. 1-2 Weeks
Anodisation Individuell: E6 C11-C14, E6 C31-C35, E6 G1A - EV3

E6 C31 Matt
E6 C11 / C32 Matt
E6 C12 / C33 Matt
E6 C13 / C34 Matt
E6 C14 / C35 Matt
E6 G1A Matt
E6 EV2 Matt
E6 EV3 Matt

Aluminium window sills lead time on request
Anodisation Individuell: Sandalor colour (Yellow, Gold, Red, Blue, Turqoise), GRANODAL®.
Anodisaton colours complete

Aluminium window sills lead time approx. 1-2 weeks
Powdercoating / RAL Individuell: according to RAL chart(K1 Classic)
(excluded Metallic / Pearl glimmer / Neon colours), Fine structure & metallic Colourchart (Alutecta) inkl. RAL 9006, RAL 9007, DB 703 matt
Chart of colours Powdercoating

Information about window sills - call 06763 308-20.

Dimensions

Alufensterbank im Querschnitt

Fixing edge (25 mm) with slotted hole in 250mm gap
Storage length: 6000 mm, custom cuttings according to drawing
Window sills in Standard colours are available directly from stock in the following depths / outreachs:
50, 70, 90, 110, 130, 150, 165, 180, 195, 210, 225, 240, 260, 280, 300, 320, 340, 360, 380, 400 mm

Window sills cuttings

Alufensterbank Pulverbeschichtung

We deliver window sills in stadard lengths of 6m or cuttings in desired dimensions. You can order pre cuttings or have the window sills cut directly when picking up in Kirchberg. Computer controlled saws guarantee high and perfect cutting edges. Pre cut window sills are ready to be installed, easy to transport and save time at the construction.

DELTA - drainage module

Alufensterbank Eloxal

Watertight window sill connection in corners between window and window sill - a secure sollution. With the help of the drainage module GUTMANN DELTA problems will be solved that occur often in corners with untight gaps between construction elements. Suitable for the window sill system GUTMANN GS 40.

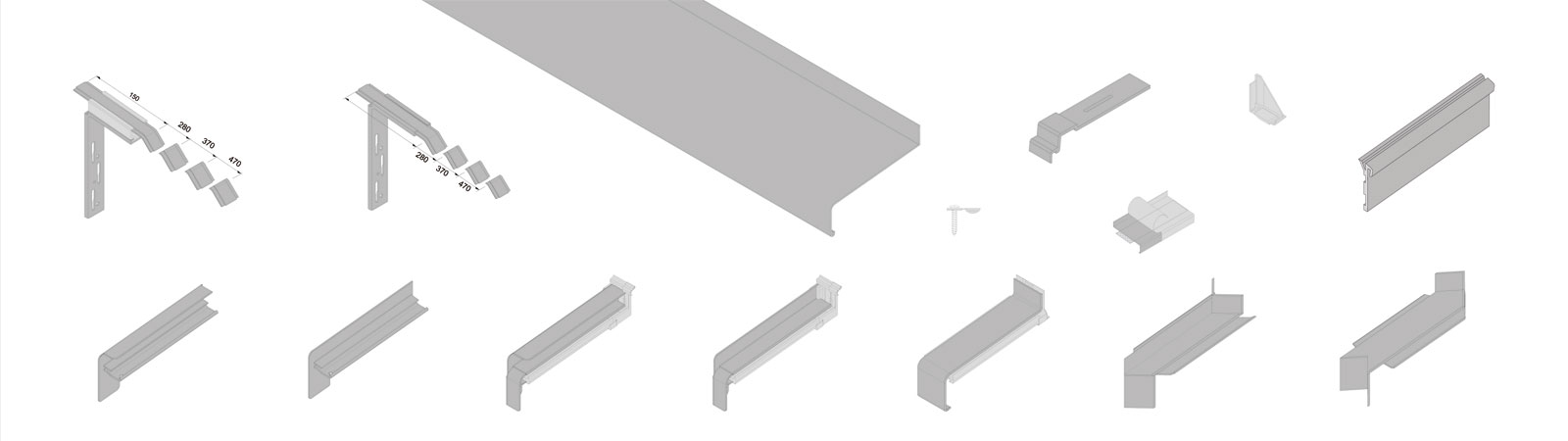

Window sill - Accessory

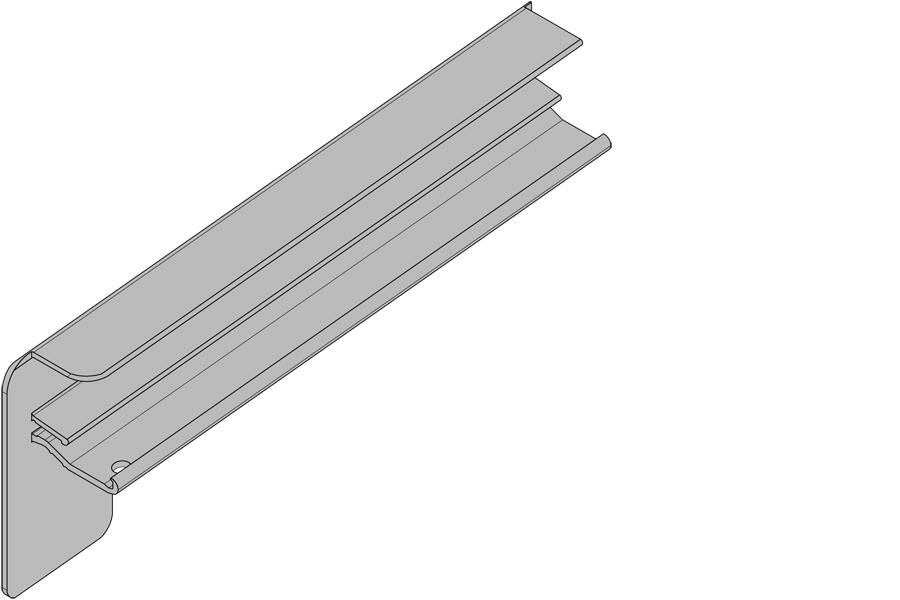

B406 AL End piece for Plastering

Alufensterbank Bordstück

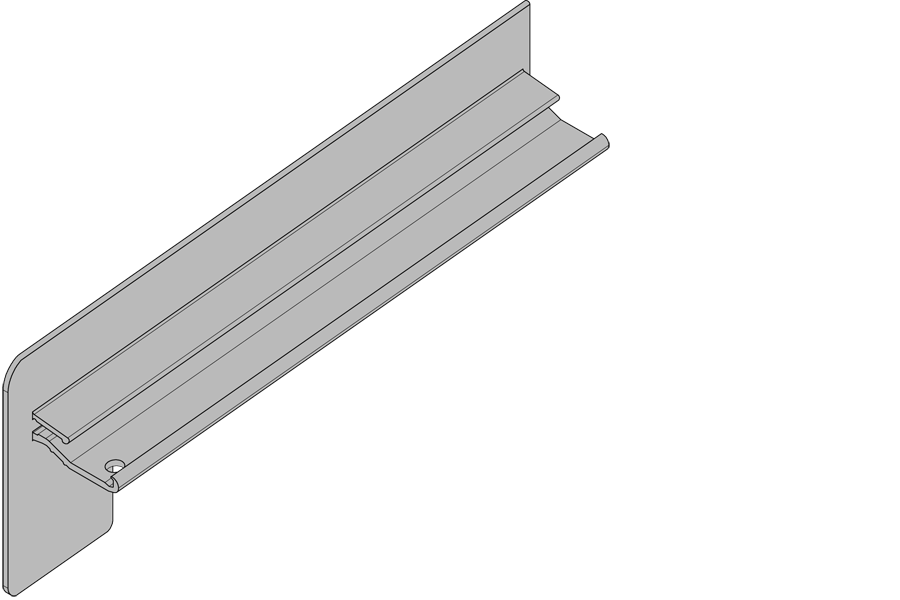

B404 AL End piece for Brickwork

Alufensterbank Bordstück

BF4006 Gliding end piece for Plastering

Alufensterbank Gleitabschluss

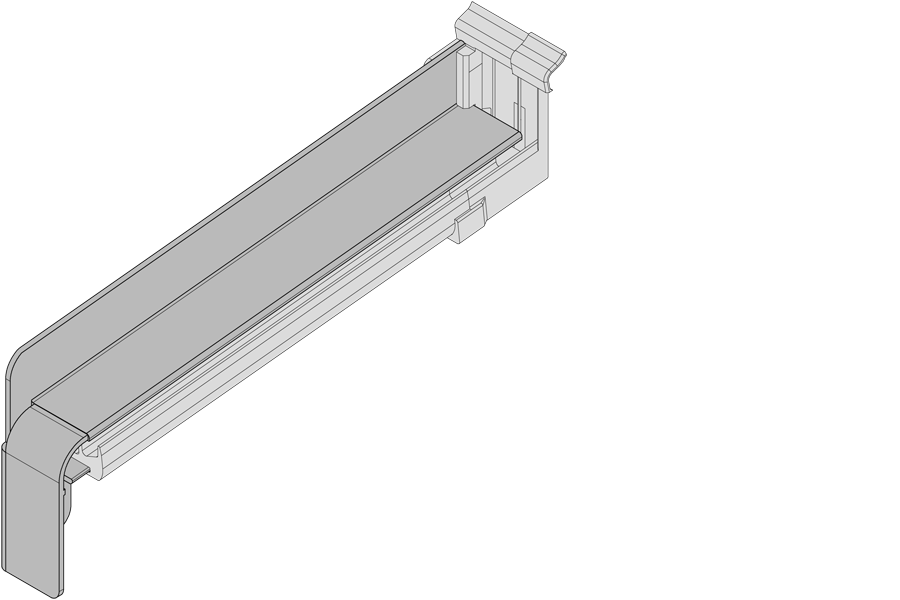

BF4004 Gliding end piece for Brickwork

Alufensterbank Gleitabschluss

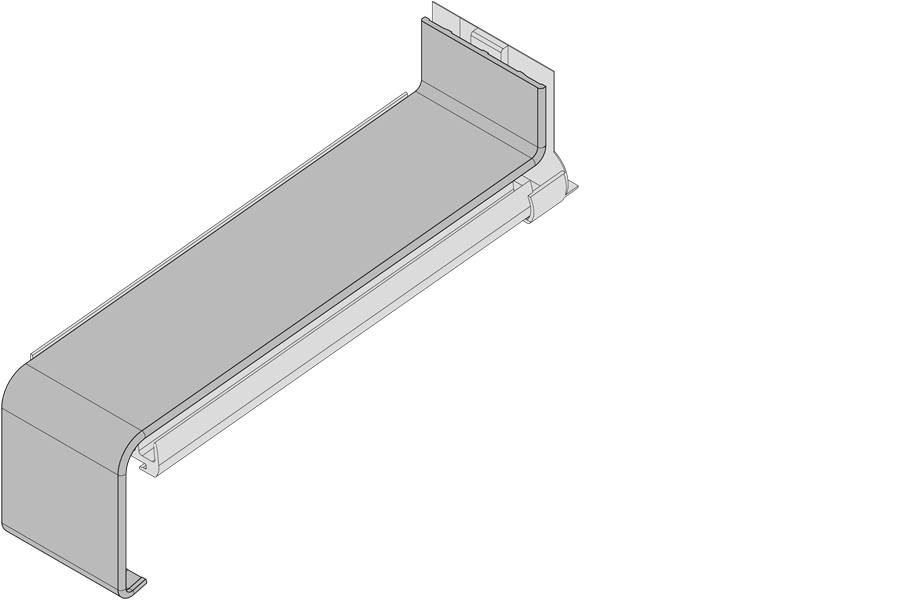

VF400 Connector

Alufensterbank Längsverbinder

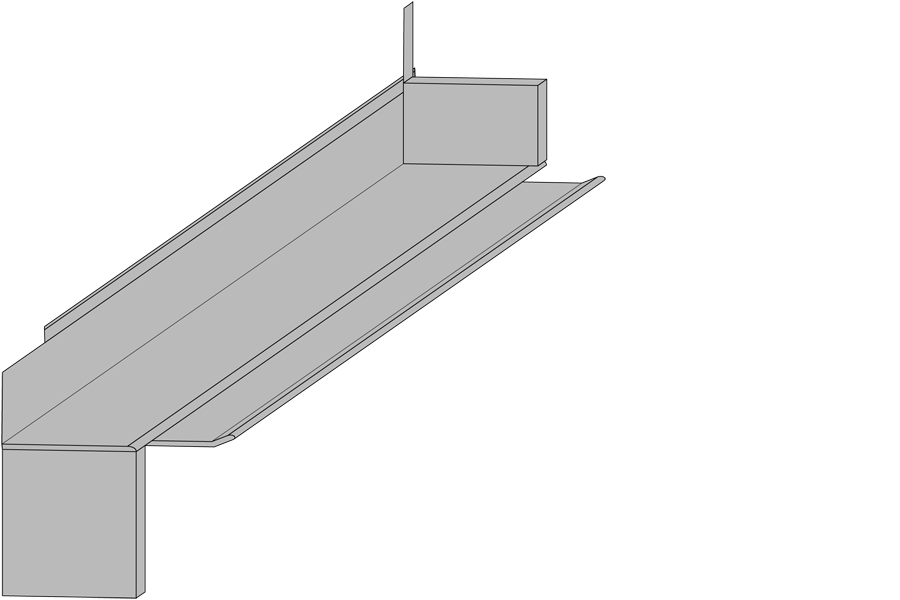

VFG400 AE Connector outer edge

Alufensterbank Verbinder Aussen

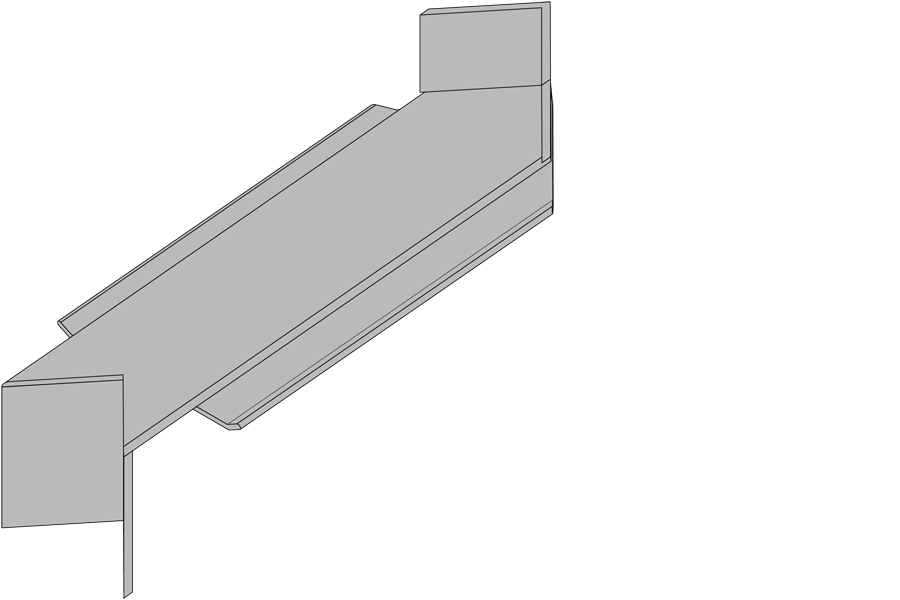

VFG400 IEConnector inner edge

Alufensterbank Verbinder Innen

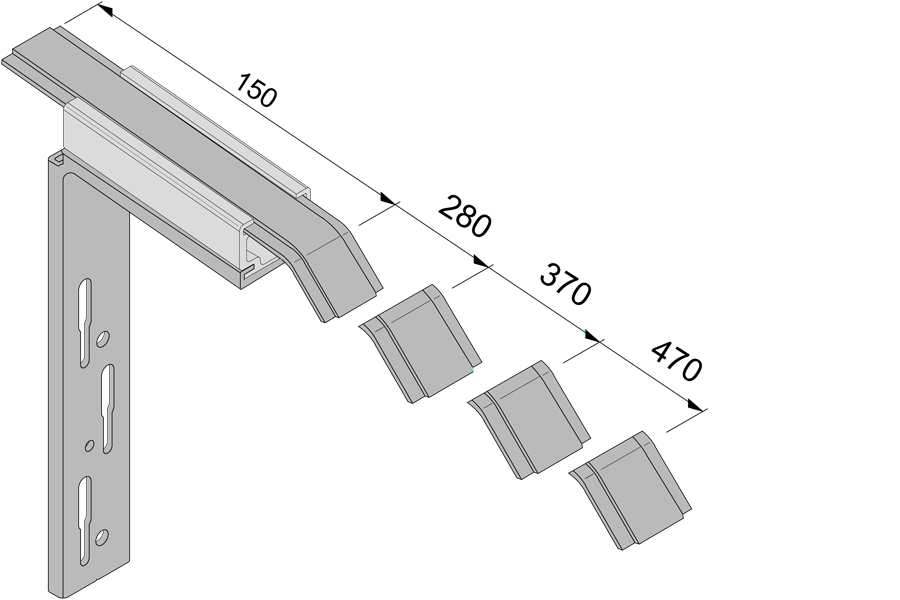

RV-TI Window sill holder, thermal separated, stepless adjustable

Alufensterbank Halter

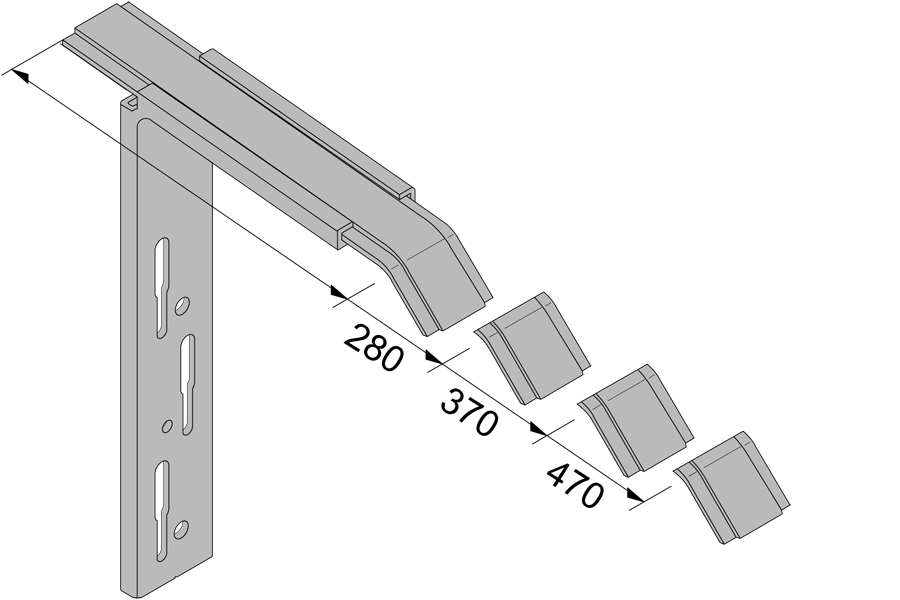

RV-4/40-150-470 Window sill holder, thermal seperated, stepless adjustable, WDVS-System

Alufensterbank Halter

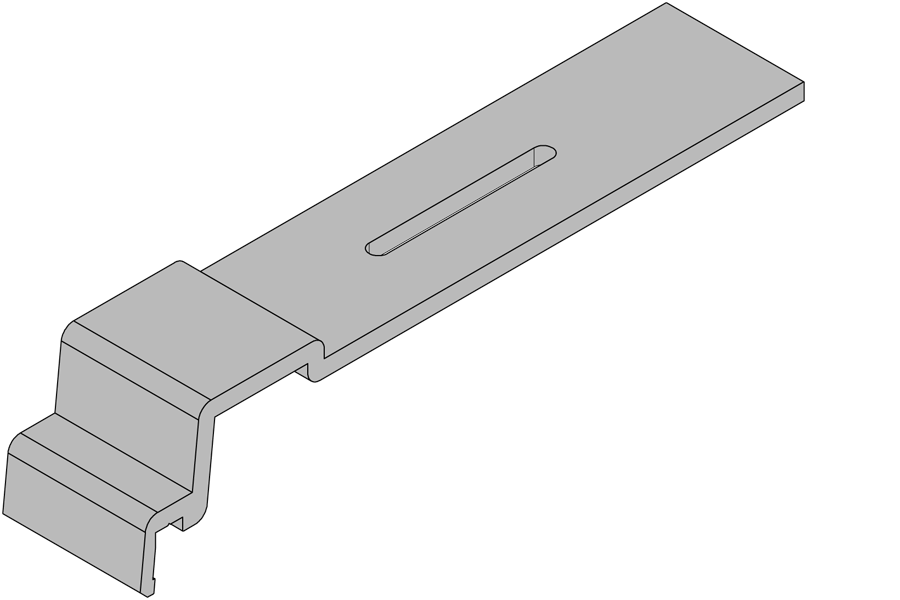

RS40 Window sill holder for brickwork

Alufensterbank Halter

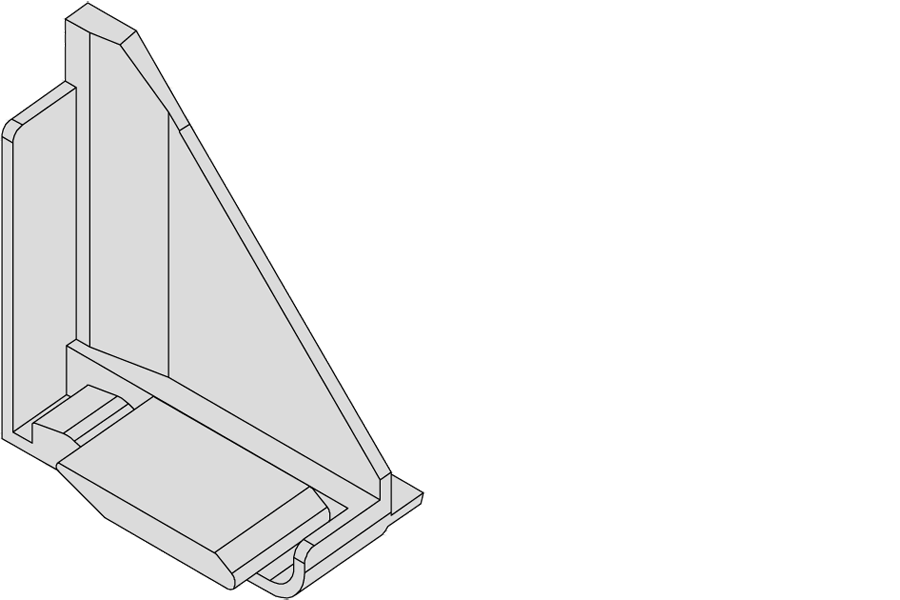

AL-B Seal for end piece B406 & B404

Alufensterbank Dichtstück

Drumming noise reduction for GS40

Alufensterbank Antidröhnstreifen

Window sill sealing self-adhesive

Alufensterbank Dichtung

Screw with hood and washer to fix window sills at the windowAlufensterbank Kappenschrauben

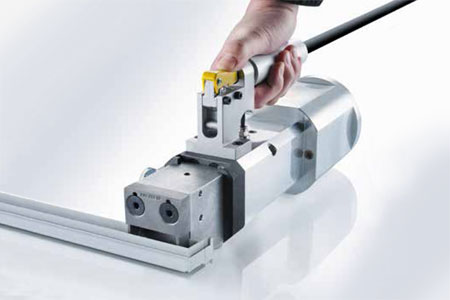

Hydropneumatic hand punch Notching tool frr Gliding end pieceBF4006 and end piece B406 / on requestHydropneumatische Handstanze

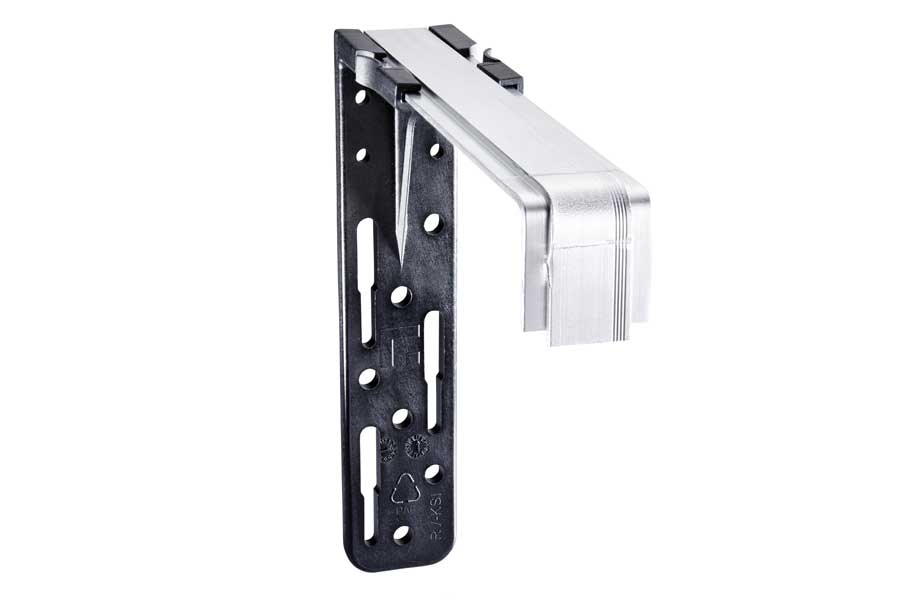

Window sill holder RV-KSI for better insulation values in the facade.

Fensterbankhalter RV-KSI

Drainage module DELTA Tight window sill connection in the corners.

Entwässerungsmodul DELTA
