Engraving plates / Anodised, engravable aluminium sheets

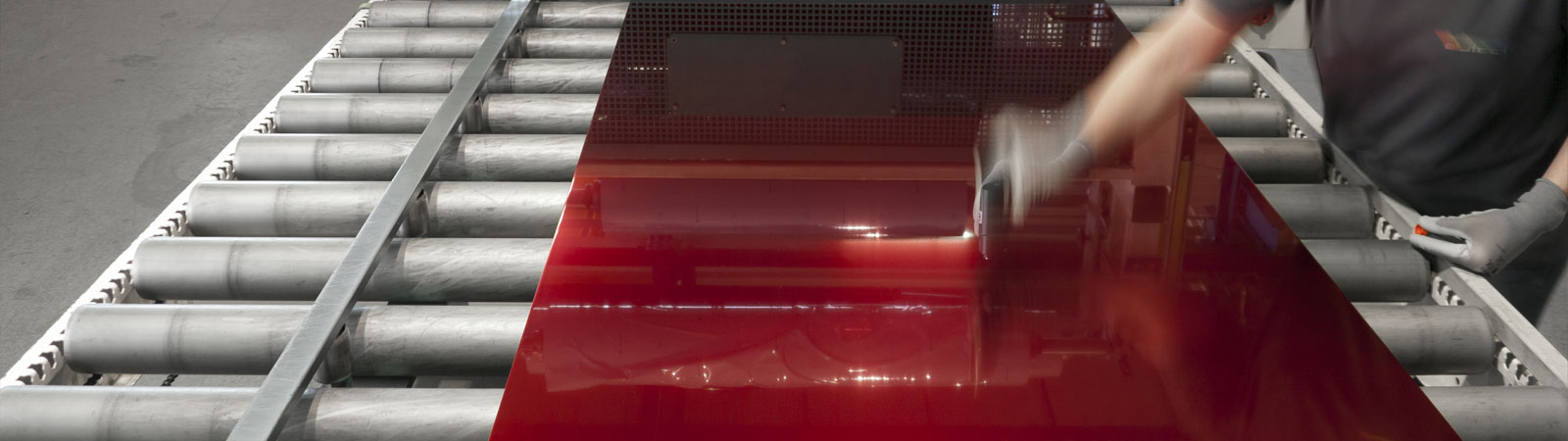

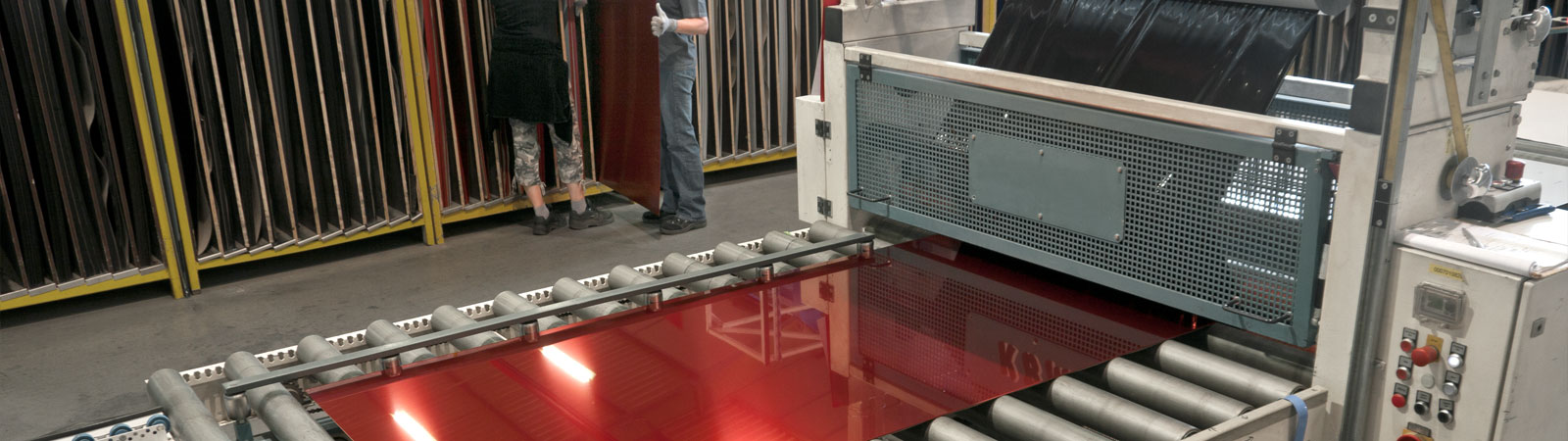

Engraving plates / Anodised, engravable aluminium sheets. ALUTECTA has been a reliable partner to the engraving plates industry for many years. Our in-house engraving plate manufacture follows specific quality standards. After surface finish application, the sheets are protected with foils and packed for dispatch. A broad range of colours and sheet thicknesses are stored with us and are directly available.

- High-quality anodised surfaces in various shades, applied on engravable aluminium sheets
 - available directly from stock in various sheet thicknesses
- available in gloss and mat qualities
- visible sides one-sided/two-sided, (incl. one-sided/two-sided protecting foil)
- dimensions = 1000x2000mm / 500x1000mm
- Sheet thicknesses Gloss = 1.0mm, 1.5mm, 2.0mm
- Sheet thicknesses Matt = 0.5mm, 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm
- Sheet thicknesses Stainless steel look = 1.0mm, 1.5mm, 2.0mm
- Protecting foil 75my
- Material = AlMg3 GQ + EQ (Mat) / AlMg1 AG1S (Glanz)
- Minimum quantities per colour in 1000*2000mm = One-sided 12 piece / Two-sided 6 piece
- Minimum quantities per colour in 500*1000mm = One-sided 48 piece / Two-sided 24 piece

The following standard colours are available directly from stock 
Clear EV1 
Nickel silver G1A 
Gold EV3
 Stainless steel look (ALANOX-G1, only mat, one-sided) 
Light bronze C11
 Medium bronze C12
 Dark bronze C13
 Black C65-1
 Green S170-0 
Orange S130-0 
Red S140-0 
Blue S150-0

Colours Engraved plates / Anodised Aluminium sheets

The anodised layer obtained during anodic oxidation is transparent. The material preserves its natural aluminium colour. Various processes are available for colouring of anodised layers. Here you will find a detailed list of available colours for engraving plates.

Clear EV1

Nickel silver G1A 

Gold EV3

Stainless steel look (ALANOX-G1, only mat, one-sided) 

Light bronze C11

Medium bronze C12 / C33

Dark bronze C13 / C34

Black C65-1

Green S170-0

Orange S130-0

Red S140-0

Blue S150-0
